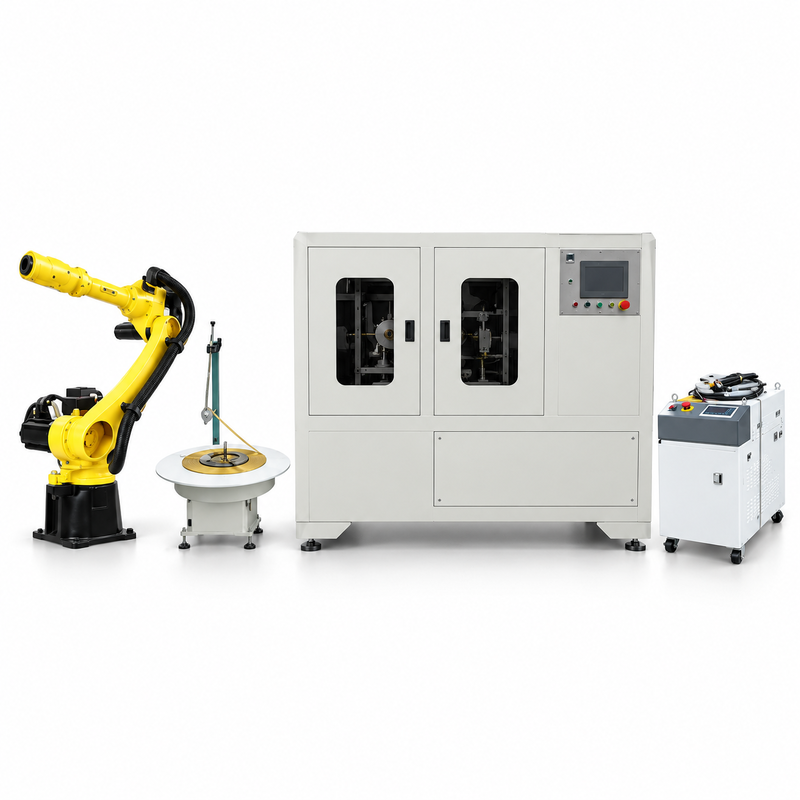

Automatic Axial Flux Motor Stator Core Winding Machine

This automatic slot punching and winding integrated machine is purpose-built for the automated production of axial flux disc motor iron cores. The complete workflow covers automatic feeding, slot punching, shaping, collecting, laser welding, and finished part unloading in a single continuous process.

The feeding structure supports manual loading of material strips, with simple installation and reliable feeding controlled by a frequency converter. Multiple shaping rollers, made of high-quality alloy with plating and grinding treatment, deliver a smooth surface and long service life while protecting material strips from scratches during processing.

The slot punching die is driven by a high-speed servo motor, featuring low noise and flexible adjustment of punching intervals to match different product requirements. The winding system uses servo control to dynamically adjust winding speed for neat punching openings. Inner and outer laser welding are completed automatically, and finished cores are collected steadily after processing.

The machine maintains excellent core precision and supports both straight slots and inclined slots for flexible production.

• Fully integrated workflow: automatic feeding, slot punching, shaping, collecting, laser welding, and unloading in one machine.
• Reliable strip feeding: manual loading with frequency-converter-controlled feeding for stable, consistent operation.
• Durable shaping rollers: high-quality alloy construction with plating and grinding treatment for a smooth surface and long service life.
• High-speed servo punching: low-noise slot punching die with flexible adjustment of punching intervals.
• Servo-controlled winding: dynamic winding speed adjustment for neat, accurate punching openings.
• Automatic laser welding: inner and outer welding completed automatically for consistent core quality.

This equipment serves multiple high-growth industries and supports stable mass production of high power density axial flux motor cores with consistent quality.

• New energy vehicle traction and hub drive motors
• eVTOL and drone power motors
• Small wind power generators
• Energy storage systems
• Industrial servo motors
• High-performance household BLDC motors

For manufacturers seeking a stable, high-efficiency automatic production solution for disc motor laminations, this all-in-one machine significantly reduces labor costs and improves production consistency, enabling reliable mass production of high power density axial flux motor cores.
